Fiber-optic duct bracket ⌀ 50
Copoprotec® coating
The support brackets for fiber-optic ducts or other low-current lines are designed to adapt to:
- The configuration of the tunnel (type of wall, distance from the wall, etc.)
- The number of ducts to support
- The maximum accepted distance between supports to avoid issues with the buckling of the ducts
Patent pending
France No. FR1902985
Identified file
RTE/CNER AE-BCS-16- 00004 ind 5 from 28/04/20
RST / RTE
Compliant with RST / RTE Part 6 - 2019
10 kV INSULATED BRACKETS WITH COPOPROTEC® COATING
TOTAL PERFORMANCE
Guaranteed dielectric resistance of 10 kV Resistant to mechanical and chemical aggression
EASY TO INSTALL
Easy to implement
MAXIMUM SECURITY
No sharp parts. Cable protection
SELF-EXTINGUISHING COATING
Copoprotec® self-extinguishing coating. Calorific value < 5 MJ/kg
Description
As with the HTB cable support brackets, the COMMET GROUP duct support brackets are made with a steel core and are coated with the Copoprotec insulation, which has multiple properties including:
- Guaranteed 10 kV dielectric insulation
- Unnecessary grounding
- An excellent resistance to shocks and chemical aggression
- A very good resistance to corrosion (> 2000 hrs, salt spray test).
- A mechanical resistance designed according to the load to be supported
- The absence of any sharp angles or hazardous parts, for operators as well as the equipment present

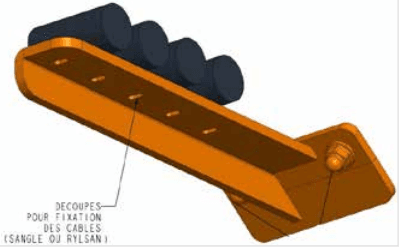

The retention of the ducts on the brackets is achieved by simple tightening using straps or plastic collars through the openings provided for this purpose.

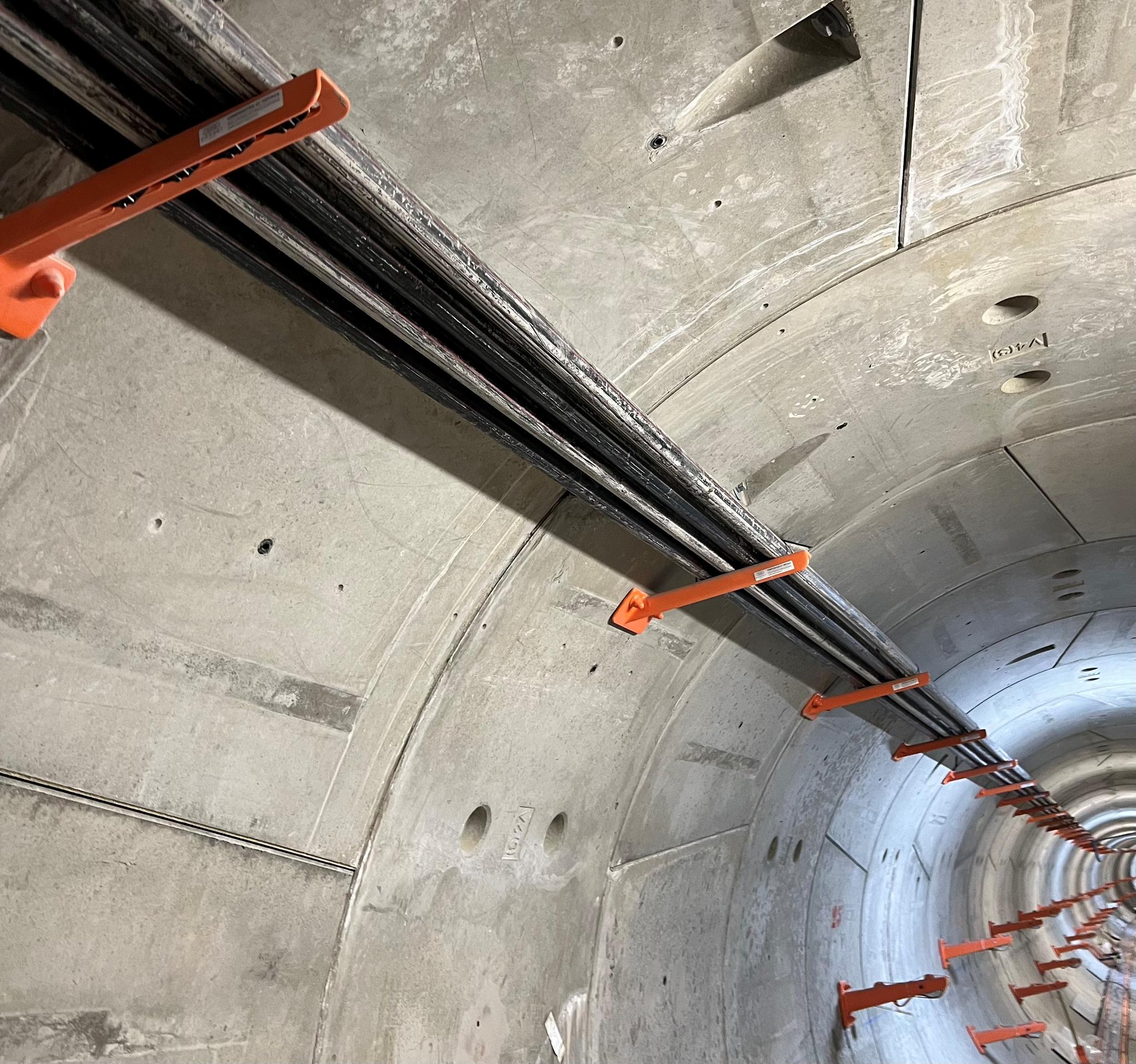

Realisations
