Composite technical flooring

COMMET GROUP’s composite technical flooring is made using RTM technology (resin transfer molding) primarily employing thermosetting polyester resins reinforced with continuous glass fibers.

Logo mise à la terre inutile

Patent pending

France No. FR1904086

Identified file

RTE/CNER AE-BCS-20-0004 of 01/02/21

Request a quote

COMPOSITE TECHNICAL FLOORING: IN A FEW WORDS

QUICK INSTALLATION


Easy to cut and install

CONDUCTIVITY


Non-conducting

PERFORMANCE


Light and strong

Highly corrosion and UV resistant

Temperature resistance: 60°C continuously

SPECIFICITIES


Rotproof

Nonslip

Fire/smoke classification according to ASTM-E84: M1 to F1

Description

The frame is made of glass fibers and alternating layers for optimized load distribution.

The technical flooring is cast in a grid shape in a preformed mold and then cured at high temperature.

The standard process for composite floors involves a polyester resin matrix with a glass content of 35%.

Grey is the standard color. Other colors are also available upon request.

Our technical flooring has high dielectric mechanical and chemical resistance.


Uses

  • Decking for footbridges

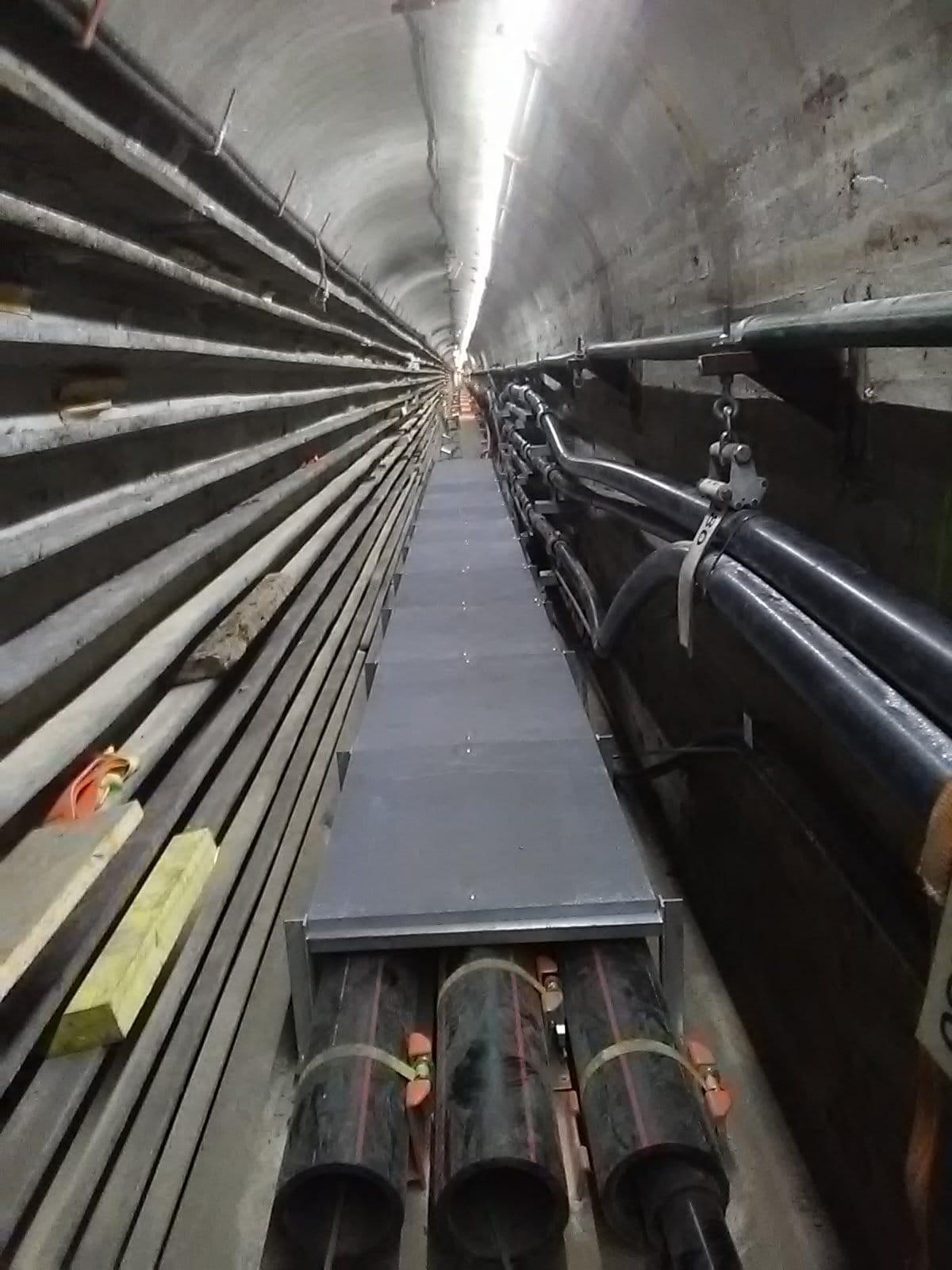

  • Decking for PEHD sheath in underground line tunnels
  • Electrical protection panels
  • Fences in electrified areas
  • Pool opening
  • Covers for trenches and septic tanks
  • Stairs
  • Offshore platforms...

Realisations

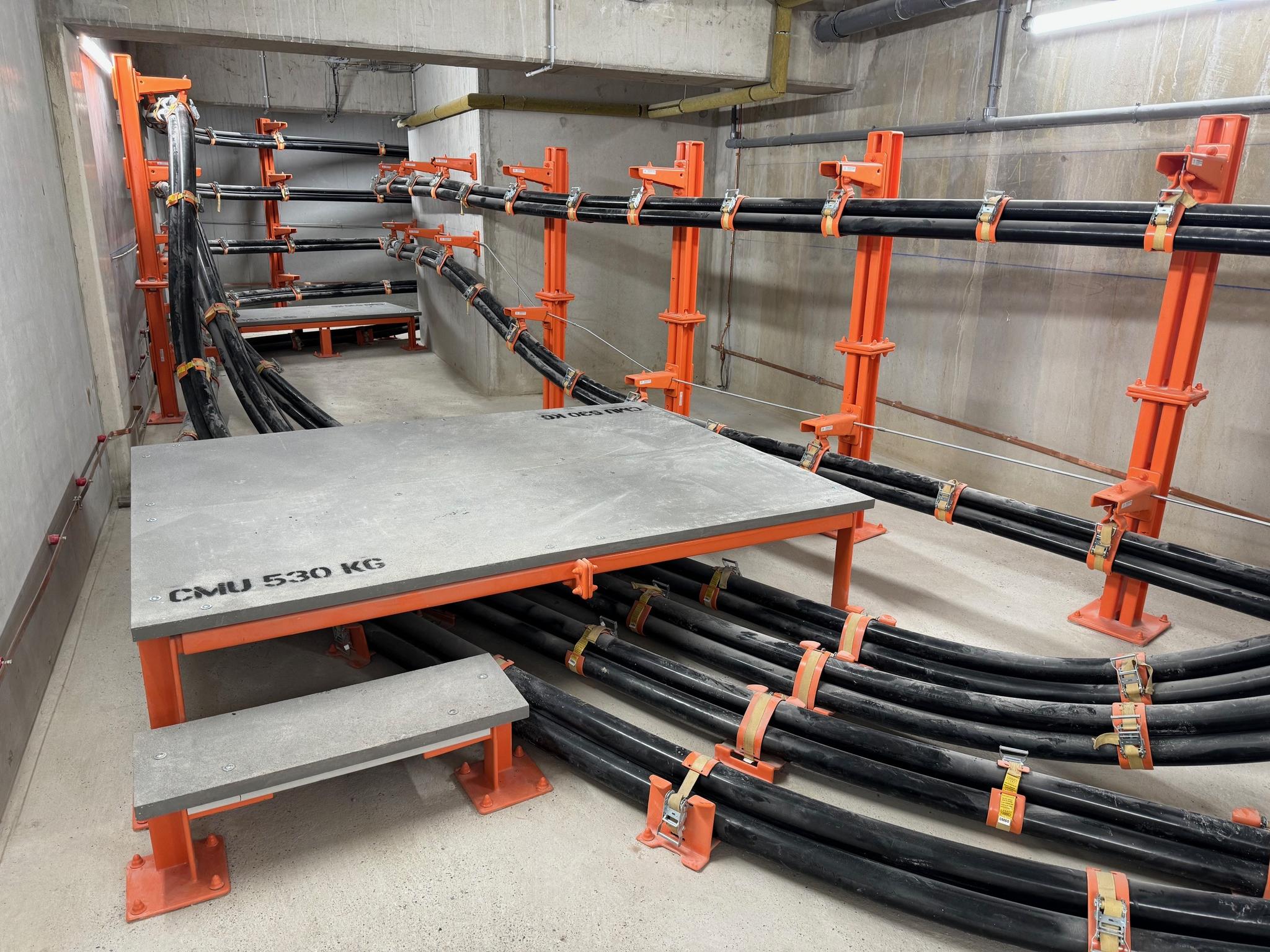

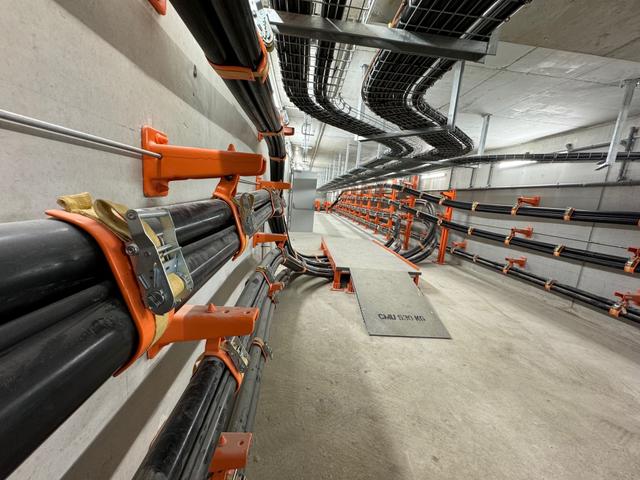

Plancher technique composite chantier électrique haute tension
