Buried network protection plates

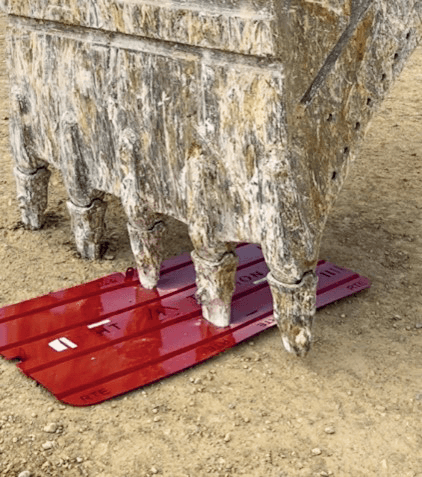

The SAFENET high-strength aluminum network protection plates serve as a warning in the event of impacts from tools or machinery with underground pipes or cables, beneath the roadways.
RST / RTE
RTE/CNER AUTH 22 0002 ind 1 of 23/08/2022
.png&w=1080&q=75 "plaque de protection aluminium")
.png&w=640&q=75 "plaque de protection aluminium")
BURIED NETWORK PROTECTION PLATE: IN A FEW WORDS
CUSTOMIZABLE
Standard or custom dimensions
Marking of the plates is possible: network name, installation company
IDENTIFICATION
Specific color according to the network’s nature
PERFORMANCE
Lightweight and high mechanical resistance (load ≥ 600 mm)
100% UV resistant
No fire risk
Compatible with temperatures < 100°C
ENVIRONMENT
100% recyclable and reusable
Description
They have multiple benefits:
- Standard or 100% customizable dimensions (based on plans or measurements)
- Mechanical connection between plates ensured by fitting followed by manual pinning without tools

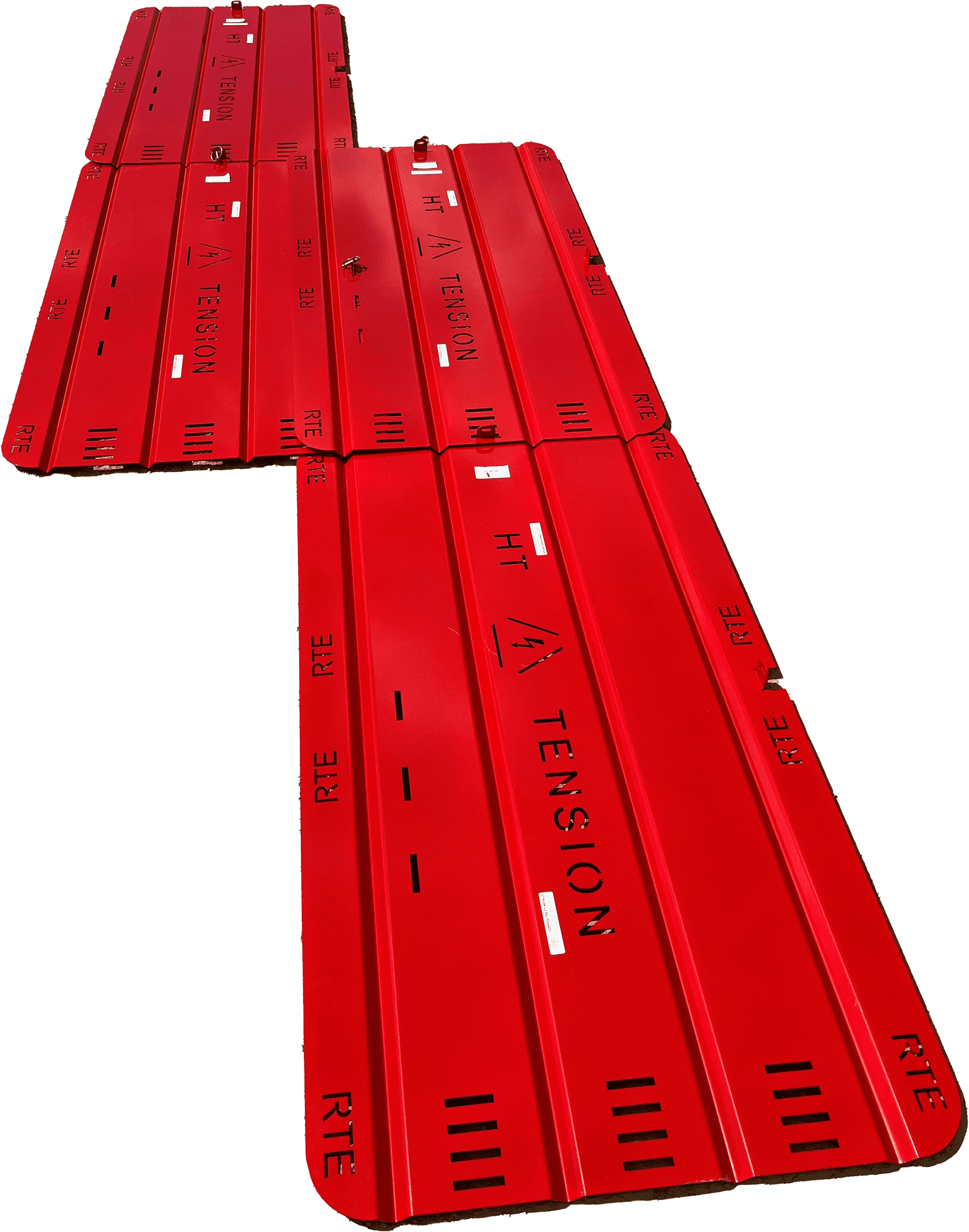

- Identification of the network type by color (red: HTB, yellow: gas) and plate markings. Also possible to identify the name of the network and the installation company
- 100% recyclable and reusable
- 100% UV resistant (aluminum)
- No fire risk
Widely compatible with operating temperatures of HTB networks (<100°C).
Mode of installation
The SAFENET protective plates are reserved for the protection of structures in "standard installation" or "semi-reinforced" cases for loads ≥ 600mm (see §6 of the RTE/CNER RST recommendations).

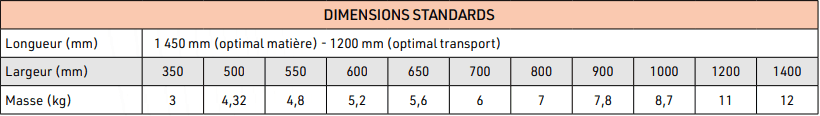

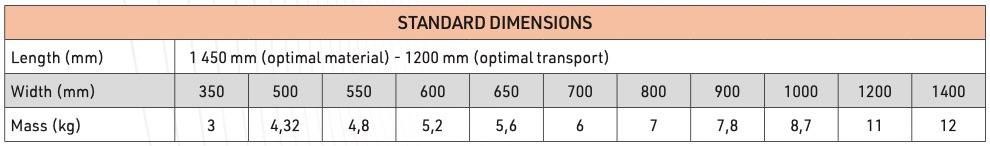

Reference table
Realisations
.png&w=2048&q=75 "plaque de protection aluminium")
